Your most accurate lung health assessment doesn’t happen during a standard treadmill test; it happens inside a sealed, transparent cabin known as the body box. We know that for many patients, the prospect of this procedure brings a mix of anxiety and technical confusion. You aren’t alone if you’ve felt overwhelmed by the technicality of your plethysmography results or worried that a minor equipment fluctuation might skew your diagnosis. At Collins Medical, we believe that clarity is the first step toward better respiratory health and independence.

We’re here to change your experience by providing a clear roadmap to understanding your lung volumes and the advanced PFT technology that ensures your data is 100% precise. This guide will help you master the complexities of your clinical data, from interpreting Functional Residual Capacity (FRC) to understanding Total Lung Capacity (TLC). We’ll break down the differences between obstructive and restrictive patterns so you can walk into your 2026 clinical consultation with the confidence of a true partner in your own care.

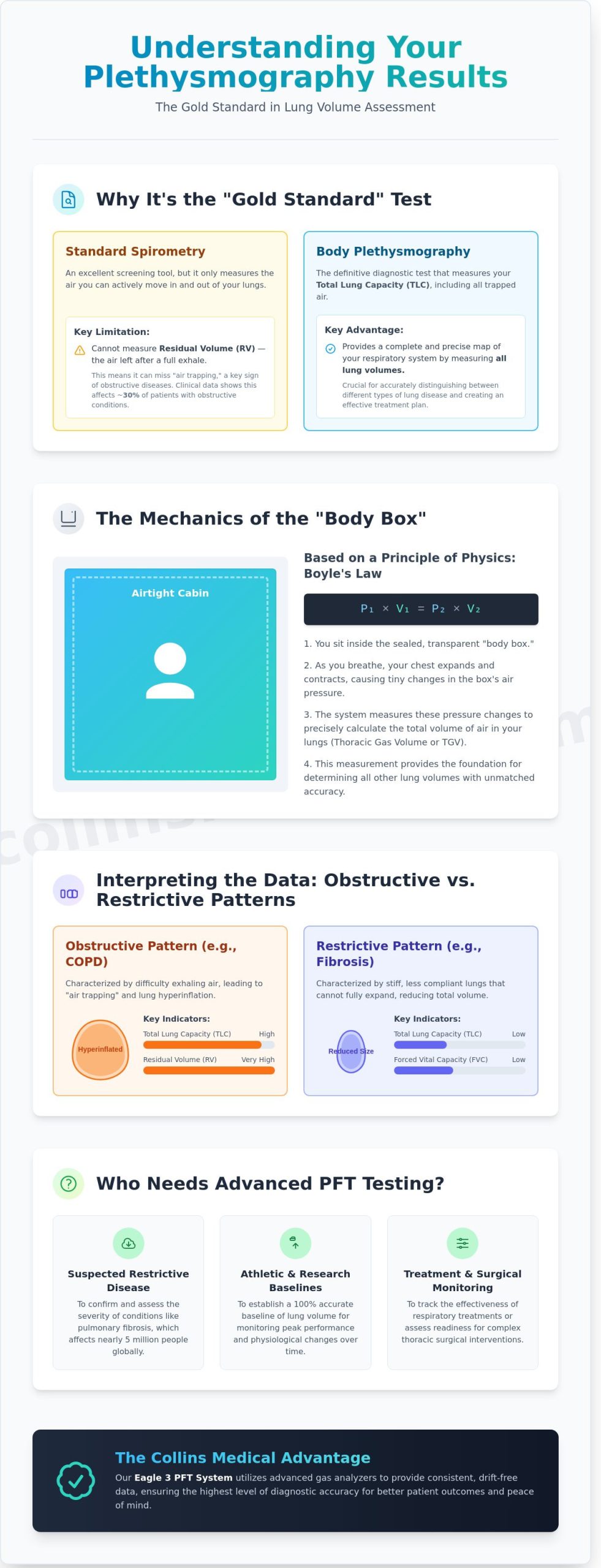

What Are Plethysmography Results and Why Are They Vital?

We believe that a clear diagnosis is the first step toward better health and independence. When your doctor requests plethysmography results, they’re looking for the most comprehensive map of your respiratory system possible. These results measure the total volume of air in your lungs, including the air that stays behind after you’ve exhaled as much as you can. While basic tests are helpful for initial screenings, they often leave out critical data points that we need to provide the best care. Clinical experts consider this test the “Gold Standard” for diagnosing complex respiratory conditions because it provides a level of detail that other methods can’t match.

The clinical value of these results lies in their ability to distinguish between different types of lung disease with pinpoint accuracy. For instance, when a patient presents with a Forced Vital Capacity (FVC) below 80% of the predicted value, a standard breath test might not explain the cause. By measuring the total lung capacity, we can see if the lungs are restricted or if air is being trapped. This precision is why we rely on these diagnostics for patients navigating chronic challenges. To better understand the equipment involved, you might ask, What is a Plethysmograph? It is a highly sensitive instrument that records volume changes, giving us the data needed to tailor your treatment plan effectively.

The Limitations of Standard Spirometry

Spirometry serves as an excellent screening tool, but it’s limited because it only measures the air that moves in and out. It can’t measure the “residual” air left behind after a full exhale. This creates a risk of missing “air trapping” in patients with Chronic Obstructive Pulmonary Disease (COPD). In fact, clinical data shows that approximately 30% of patients with obstructive conditions have trapped air that spirometry alone cannot detect. The Body Box is a hermetically sealed chamber used to apply Boyle’s Law to determine the total gas volume inside your chest. By using this method, we ensure that no part of your lung function remains a mystery.

Who Needs Body Plethysmography?

We often recommend this advanced testing for individuals who require a deeper level of clinical insight. When a physician moves from simple screening to full body box testing, they’re looking for the definitive plethysmography results that clarify the underlying pathology. You might need this test if you fall into one of these categories:

• Suspected Restrictive Disease: If you’re showing signs of pulmonary fibrosis, which affects nearly 5 million people globally, we need these results to confirm the diagnosis and assess the severity.
• Athletic Baselines: Professional athletes or clinical researchers often require a 100% accurate baseline of lung volume to monitor peak performance and physiological changes over time.
• Treatment Monitoring: We use these results to track the efficacy of long-term respiratory treatments or to assess your readiness for complex thoracic surgical interventions.

Our goal is to provide you with the reassurance that comes from expert knowledge and reliable data. By moving beyond simple screenings, we can pinpoint the exact nature of your respiratory health. This allows us to work together to find solutions that improve your comfort and quality of life every day. We’re here to guide you through every step of this process with the care and expertise you deserve.

The Mechanics of the Body Box: Measuring Thoracic Gas Volume

We understand that stepping into an airtight glass cabin, often called a “body box,” can feel intimidating. However, this specialized environment is essential for capturing highly accurate data about your lung function. The test relies on Boyle’s Law, a fundamental principle of physics stating that the pressure and volume of a gas are inversely proportional when temperature remains constant. When you breathe inside the box, the equipment monitors how the pressure changes around your body to calculate the exact amount of air trapped in your chest.

This measurement is known as Thoracic Gas Volume (TGV). It serves as the baseline for all other plethysmography results. Unlike standard spirometry, which only measures the air you can actively exhale, plethysmography accounts for every cubic centimeter of air in your lungs, including the air that remains after a full breath out. Our clinical experts rely on this data to identify conditions like air trapping or hyperinflation, which are common in obstructive pulmonary diseases.

Boyle’s Law and Lung Volume

The precision of the body box depends on maintaining a strictly controlled environment. As you inhale, your chest expands, which slightly increases the pressure within the airtight cabin while decreasing the pressure inside your lungs. The sensors in the box are incredibly sensitive; they detect pressure fluctuations as small as 0.01 kPa. To ensure these readings are valid, the internal temperature must remain stable within 0.1 degrees Celsius. Even a minor temperature shift could cause the air to expand, leading to an overestimation of your lung capacity.

By measuring these subtle shifts, the software applies the formula P1V1 = P2V2 to determine your Functional Residual Capacity (FRC). This is a critical step in the Clinical Interpretation of Plethysmography because it allows doctors to see the “hidden” volume of the lungs. If you’re managing a complex respiratory condition, these figures provide a much clearer picture of your health than basic breathing tests alone.

Understanding the Panting Maneuver

During the test, we will ask you to perform a specific breathing technique known as the panting maneuver. You’ll be asked to take small, rapid breaths, similar to how a dog pants, at a rate of about 60 to 90 breaths per minute. While you do this, a mechanical shutter will briefly close over the mouthpiece for about 2 to 3 seconds. This closure is necessary because it allows the pressure in your mouth to equalize with the pressure in your alveoli, the tiny air sacs in your lungs. It’s this equalization that makes the plethysmography results so reliable.

Success in this maneuver requires a clear partnership between the patient and the technician. We often see common errors that can skew the data, such as:

• Leaking air: If your lips don’t maintain a tight seal around the mouthpiece, the pressure readings will drop.
• Glottis closure: Some patients accidentally close the back of their throat during the shutter period, which prevents the sensors from reading lung pressure.
• Excessive effort: Pressing too hard against the shutter can cause chest wall distortion, leading to a 5% to 10% error in volume calculation.

At Collins Medical, we believe that patient comfort is the foundation of clinical accuracy. If you’re concerned about the testing process, you can consult with our respiratory specialists to learn more about how we support patients through every step of their diagnostic journey. Our goal is to ensure you feel secure and informed, allowing us to gather the highest quality data for your care plan.

Interpreting the Data: Identifying Restrictive and Obstructive Patterns

When we review your plethysmography results, we look at three fundamental measurements that act as a diagnostic fingerprint for your respiratory health. These metrics tell us how your lungs are functioning and where any limitations might exist. By comparing your actual numbers against predicted values based on your age, height, and gender, we can pinpoint specific physiological changes.

Total Lung Capacity (TLC) represents the maximum amount of air your lungs can hold after you’ve taken the deepest breath possible. It’s the “ceiling” of your lung volume. Residual Volume (RV) is the air that stays in your lungs even after you’ve blown out as much as you can. It’s vital because it prevents your air sacs from collapsing. Finally, Functional Residual Capacity (FRC) is the volume of air remaining in your lungs after a normal, quiet breath. For a deeper look at clinical standards, the NIH Guide to Body Plethysmography provides the technical benchmarks our specialists use to ensure accuracy.

Obstructive vs. Restrictive Results

We categorize lung conditions into two primary patterns based on how these volumes shift. An obstructive pattern occurs when air can get into the lungs but has difficulty leaving. This leads to high RV and TLC values as air becomes trapped in the chest. This is a hallmark of conditions like asthma or emphysema. Conversely, a restrictive pattern shows low TLC and FRC values. This indicates that the lungs are unable to expand fully, a common finding in patients with pulmonary fibrosis or chest wall deformities. The following table illustrates typical percentage-of-predicted values we see in these cases.

The Clinical Significance of Air Trapping

Hyperinflation happens when your RV exceeds 120% of the predicted value. This means your lungs are constantly “overfull” with stale air, making it significantly harder to take a fresh, oxygen-rich breath. For many patients, this translates to a 30% or greater reduction in daily exercise tolerance and a persistent feeling of breathlessness. We use the RV/TLC ratio to quantify the severity of this air trapping. A ratio that is 10% to 15% higher than the predicted norm suggests that a large portion of your lung capacity is occupied by air that isn’t participating in active gas exchange.

Your plethysmography results are also essential for surgical planning. If you’re being considered for Lung Volume Reduction Surgery (LVRS), clinicians rely on these specific measurements to identify which areas of the lung are most affected. A patient must typically show a TLC of at least 100% and an RV of at least 150% of predicted values to be considered for this procedure. These numbers provide the clinical evidence needed to ensure that removing diseased tissue will actually improve your ability to breathe and enhance your overall quality of life. We’re here to help you understand what these numbers mean for your long-term care plan.

Ensuring Accuracy: Preparation and Technical Standards for 2026

Achieving precise plethysmography results requires more than just high-end equipment; it demands a meticulous approach to both patient readiness and technical maintenance. We understand that stepping into a sealed cabin can feel intimidating, but these rigorous protocols exist to ensure the data we collect truly reflects your lung health. By 2026, the integration of real-time environmental monitoring and advanced sensor technology has made these tests more reliable than ever before. Accuracy begins long before you enter the clinic, as your physiological state directly influences the air volume measurements within the box.

Patient preparation is the first line of defense against skewed data. We ask that you avoid smoking for at least 4 hours prior to your appointment, as nicotine and carbon monoxide can irritate the airways and alter vascular resistance. Similarly, heavy meals should be avoided for 2 hours before the test. A full stomach can restrict the downward movement of the diaphragm, leading to an artificial reduction in measured lung volumes. We also monitor environmental variables like room temperature and barometric pressure. Because plethysmography relies on Boyle’s Law, even a 2 degree Celsius fluctuation in the testing room can shift gas volume calculations. Our systems now use integrated weather stations to automatically adjust for these atmospheric changes in real time.

For those who feel uneasy in confined spaces, the “Body Box” has undergone significant design evolutions. Research from 2024 indicated that approximately 15% of patients experienced some level of claustrophobia during testing. In response, modern 2026 units feature expansive, clear tempered glass panels and high-speed internal ventilation. These improvements maintain the necessary airtight seal while providing a much more open, airy feel. We also use high-definition intercom systems so you can speak with your technician at any moment, ensuring you feel supported throughout the process.

Pre-Test Checklist for Patients

Hardware Calibration Standards

Technical integrity is non-negotiable in a clinical setting. Every morning, our team performs a “bio-cal” using a known subject or a calibrated 3-liter syringe to verify the system’s accuracy. We also conduct daily leak tests on the cabin seals. Even a microscopic gap in the door gasket can lead to a failure in pressure stabilization, rendering the data useless. Modern PFT systems now utilize self-linearizing analyzers that check their own sensors against internal reference gases, which significantly reduces the risk of human error during the calibration phase.

Clinical excellence depends on these tight tolerances. ‘Modern PFT systems must maintain a variance of less than 3% to be considered clinically reliable in 2026.’ This standard ensures that when we track your progress over several months, the changes we see are due to your health status rather than equipment drift. If you have questions about the technology we use or how to prepare for your upcoming visit, please reach out to our team for a professional respiratory consultation today.

The Collins Medical Advantage: Precision Diagnostics with Eagle 3

Advancing Your Clinical Diagnostic Standards

Navigating the complexities of respiratory health requires more than just raw data; it requires clarity and confidence. We’ve explored how 2026 technical standards prioritize the precision of thoracic gas volume measurements to distinguish clearly between restrictive and obstructive patterns. Obtaining accurate plethysmography results is the essential first step in creating a personalized treatment plan that truly improves a patient’s quality of life. Precision matters for every breath. Since the 1930s, Collins Medical has operated as a global leader in respiratory diagnostics, bringing decades of expertise to every clinical setting. Our flagship Eagle 3 system features advanced self-linearizing technology that ensures consistent accuracy across every test. We also provide dedicated remote diagnostic support and real-time troubleshooting to keep your clinic running smoothly without interruption. You’re not just choosing equipment; you’re partnering with a team committed to supporting the Irish healthcare community. We believe that better technology leads to better lives, and we’re ready to support your journey toward diagnostic excellence.

Explore the Eagle 3 PFT System for Your Clinic to enhance your diagnostic capabilities and provide the reassurance your patients deserve.

Frequently Asked Questions

What is a normal plethysmography result?

A normal result generally falls between 80% and 120% of the predicted values established by the American Thoracic Society. These plethysmography results indicate your lung volumes are within the expected range for your age, height, and gender. We look closely at your Total Lung Capacity to ensure your lungs hold the correct amount of air. If your numbers sit within this 40% variance window, your respiratory function is typically considered healthy.

How long does it take to get plethysmography results back?

You can expect to receive your final report within 24 to 48 hours after your appointment. While the technician sees raw data immediately, a specialized respiratory consultant must review the findings to ensure accuracy. We prioritize a quick turnaround so you don’t have to wait long for answers. Your GP usually receives the electronic file within 2 business days of the clinical review.

Is body plethysmography better than spirometry?

Plethysmography provides a more complete picture because it measures the air you can’t breathe out, unlike spirometry. Spirometry only tracks the air you move in and out, which misses approximately 20% to 30% of your total lung volume. We use the “body box” to identify restrictive diseases that a standard breath test might miss. It’s the gold standard for measuring functional residual capacity and total lung volume.

Can I take my inhaler before a plethysmography test?

You should generally stop using short-acting rescue inhalers 4 to 6 hours before your appointment. If you use long-acting bronchodilators, we recommend waiting 12 to 24 hours to ensure your plethysmography results reflect your baseline lung function. Always bring your inhalers to the clinic. We’ll provide specific instructions based on your medication list to ensure the test is as accurate as possible for your diagnosis.

What happens if my plethysmography results show ‘air trapping’?

Air trapping means your Residual Volume (RV) is higher than 120% of the predicted value. This happens when air gets stuck in the lungs after you breathe out, which is common in 70% of advanced COPD cases. It doesn’t mean you’re in immediate danger. It simply helps us understand why you might feel short of breath during physical activity. We’ll use this data to adjust your medication or respiratory therapy.

Is the body box test safe for children or the elderly?

The test is entirely safe and non-invasive for children aged 5 and older and most elderly patients. The main requirement is the ability to follow breathing instructions for about 3 to 5 minutes. Since there are no needles or radiation, the physical risks are minimal. We’ve designed our clinical environment to be calm and supportive to help patients of all ages feel secure and comfortable inside the booth.

How much does a body plethysmography test typically cost?

In Ireland, the private cost for this diagnostic test typically ranges from €150 to €250. This price often includes the technician’s time and the consultant’s interpretation fee. If you have private health insurance, companies like VHI or Laya Healthcare may cover up to 75% of the cost depending on your specific policy. We recommend checking your plan details before booking your session at our facility.

What should I do if my results are abnormal?

You should schedule a follow-up consultation with your respiratory specialist to discuss the next steps. Abnormal findings are just one piece of the puzzle and require clinical correlation with your physical symptoms. In 90% of cases, these results lead to a more targeted treatment plan or helpful lifestyle adjustments. We’re here to guide you through the process with expertise and care to improve your daily quality of life.
