Why does the most accurate method for measuring total lung capacity often cause the highest level of patient anxiety? We recognize that for many of the 500,000 people across Ireland living with chronic respiratory conditions, stepping into a sealed glass cabin feels daunting. While the plethysmography procedure remains the undisputed clinical gold standard, the challenges of claustrophobia and the technical panting maneuver frequently lead to inconsistent data. You want to provide the highest level of care, but achieving that precision requires a delicate balance of technical skill and patient reassurance.

This guide provides a clear clinical roadmap to help you bridge that gap. We’ve compiled our expertise to help you master every step of the protocol, from the underlying physics of Boyle’s Law to practical strategies that improve patient compliance. You’ll learn how to interpret complex TGV and Raw measurements with greater confidence; we also highlight how modern PFT systems like the Eagle 3 are designed to simplify these workflows. By focusing on both the science and the person, we can ensure every test delivers the reliable, life-changing insights your patients deserve.

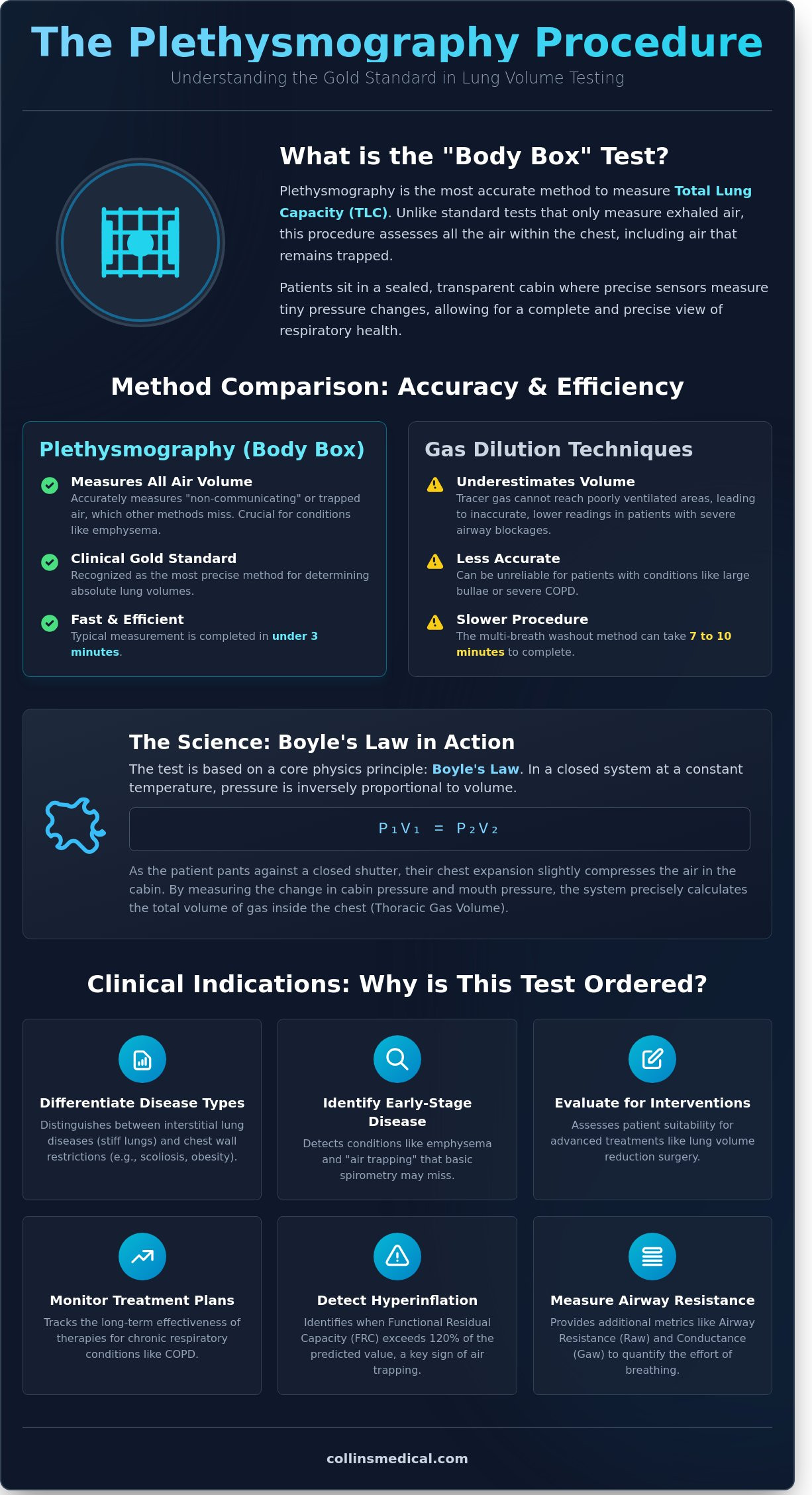

What is the Plethysmography Procedure? Defining the ‘Body Box’ Test

We understand that undergoing advanced lung function tests can feel daunting. The plethysmography procedure is recognized by clinicians worldwide as the “gold standard” for assessing absolute lung volumes. While a standard spirometry test measures the amount of air you can forcefully exhale, it cannot account for the air that remains in your lungs after a full breath. This is where plethysmography becomes essential for accurate lung volume measurement. It provides a complete, 360-degree view of your respiratory health by measuring every cubic centimeter of air within your chest, including the air you cannot physically blow out.

The science behind the “body box” relies on a fundamental principle of physics known as Boyle’s Law. During the test, you’ll sit inside a transparent, airtight cabin that resembles a spacious telephone booth. Pulmonary plethysmographs work by monitoring minute changes in pressure within this sealed environment. As you breathe against a gentle shutter, the equipment calculates the volume of your thoracic cavity. Unlike gas dilution techniques, which often take 7 to 10 minutes and can be less accurate for patients with trapped air, this method is highly precise. Our primary clinical goal is to determine your Functional Residual Capacity (FRC). This is the specific volume of air left in your lungs at the end of a normal, relaxed breath, and it’s a vital indicator of how well your respiratory system is functioning.

Indications for Body Plethysmography

Clinicians typically order a plethysmography test when standard pulmonary function tests (PFTs) show signs of restriction or obstruction that require further investigation. In Ireland, where the HSE estimates over 380,000 people live with COPD, identifying “air trapping” is a clinical priority. We use this procedure to detect hyperinflation, which occurs when a patient’s FRC exceeds 120% of their predicted value. This level of detail is crucial for:

• Differentiating between interstitial lung diseases, which stiffen the lung tissue, and chest wall restrictions like severe scoliosis or obesity.
• Identifying early-stage emphysema that might not appear on a basic spirometer.
• Evaluating a patient’s suitability for lung volume reduction surgery or other advanced interventions.
• Monitoring the effectiveness of long-term treatment plans for chronic respiratory conditions.

The Advantages of Plethysmographic Measurement

The most significant advantage of this method is its ability to measure “non-communicating” air spaces. If you have large bullae or severe airway blockages, gas dilution tests will often underestimate your lung volume because the tracer gas cannot reach those trapped pockets. The plethysmography procedure doesn’t have this limitation; it measures the total volume of the chest regardless of whether the air is moving. It’s also remarkably efficient. Most patients complete their measurements in under 3 minutes, which is significantly faster than the multi-breath nitrogen washout method. Additionally, we can measure your Airway Resistance (Raw) and Conductance (Gaw) during the same session. These metrics provide a clear picture of how much effort you’re using to breathe, allowing us to offer more tailored support for your comfort and independence. If you’re feeling unsure about the process, remember that our specialists are here to guide you through every step with patience and integrity.

The Science of the Box: Boyle’s Law and Thoracic Gas Volume

The plethysmography procedure relies on a fundamental principle of physics known as Boyle’s Law. This law states that in a closed system with a constant temperature, the pressure of a gas is inversely proportional to its volume. When you sit inside the airtight cabin, often referred to as the “body box,” we create a controlled environment where every small change in your chest movement is measured with clinical precision. This environment allows us to capture data that standard handheld tests simply cannot reach.

To understand What is Plethysmography and why it remains the gold standard for lung volume measurement, we must look at how gas behaves when it’s compressed. During the test, a specialized shutter mechanism at the mouthpiece closes for a brief period, usually lasting between 2 and 3 seconds. As you perform a gentle panting maneuver against this closed shutter, your chest expands and contracts. Because the airway is temporarily blocked, no air flows, which means the pressure changes recorded at the mouth are an exact mirror of the pressure changes occurring in the alveoli deep within your lungs.

This process is essential for defining the Thoracic Gas Volume (TGV). We specifically measure TGV at the point of Functional Residual Capacity, which is the amount of air left in your lungs after you finish a normal, relaxed breath. By applying the formula P1V1 = P2V2, we can calculate the total volume of air in your thorax, including air that might be trapped behind collapsed or obstructed airways. This level of detail is vital for patients with restrictive or obstructive conditions, as it provides a complete map of lung capacity that informs every step of your treatment.

Understanding Pressure-Volume Relationships

The body box functions by monitoring the volume of air you displace within the sealed chamber. As your chest expands during inspiration, it occupies more space, which naturally compresses the air surrounding you inside the cabin and increases the “box pressure.” We carefully distinguish between this box pressure and “mouth pressure” to ensure the results are accurate. Boyle’s Law states that the product of pressure and volume remains constant within the 2026 Eagle 3 PFT system’s airtight cabin during the 30-second calibration phase. This mathematical certainty allows our specialists to provide you with a reliable baseline for your respiratory health.

Calculating Airway Resistance (Raw)

Airway Resistance, or Raw, is a measurement of the pressure required to move air through your bronchial tubes. In a healthy respiratory system, air flows with very little resistance; however, for the 12% of patients currently managing chronic obstructive pulmonary disease in Ireland, this resistance is often much higher. Raw is a critical marker for identifying early-stage asthma or upper airway obstructions that might be missed during a standard spirometry test.

Modern diagnostic software now automates these complex calculations by analyzing over 400 data points per second in real-time. This technology removes the risk of human error and ensures that the results are available immediately for your consultant to review. We believe that access to such precise data is the first step toward regaining your independence and comfort. If you are interested in learning more about the tools we use for these assessments, you can view our range of specialized respiratory diagnostic solutions designed to support patient care across Ireland.

The 2023 ERS/ATS clinical guidelines emphasize that thermal equilibrium within the box is necessary for a successful plethysmography procedure. We ensure the cabin remains at a stable temperature, as even a 0.5-degree fluctuation can alter the pressure readings. By maintaining these strict clinical standards, we provide you with a safe, comfortable, and highly accurate assessment of your lung function.

Step-by-Step Clinical Protocol for a Successful Procedure

We begin every testing session by ensuring the environment is calm and the patient feels fully supported. Accuracy in a plethysmography procedure starts with precise physical measurements. We record your height to the nearest 0.1 cm and weight to the nearest 0.5 kg because these figures form the foundation for the predicted values used to interpret your lung health. We also confirm that short-acting bronchodilators were withheld for at least 4 hours and long-acting versions for 24 hours to ensure the data reflects your baseline respiratory function.

The clinical sequence follows a methodical rhythm to maintain patient comfort. During a standard Lung Plethysmography Procedure, we guide you through a specific breathing pattern. You’ll start with quiet, relaxed tidal breathing to establish a stable functional residual capacity. Once your breathing pattern is rhythmic, we close a shutter in the mouthpiece for approximately 2 to 3 seconds. This brief closure is the critical moment where we measure the volume of air trapped in your chest. We follow the 2019 ATS/ERS technical standards, which require at least three acceptable maneuvers where the Thoracic Gas Volume (TGV) results stay within a 5% range of each other for proven repeatability.

The ‘Panting Maneuver’ and Patient Coaching

Coaching is a specialized skill that reduces patient anxiety and improves data quality. We ask you to perform a gentle panting motion at a frequency of 0.5 to 1.0 Hz, which is roughly one breath per second. It’s vital to keep your hands firmly on your cheeks to prevent “cheeking,” a common error where air moves into the mouth rather than reflecting pressure changes in the lungs. If you feel claustrophobic, we utilize the large glass windows of our modern booths and maintain constant verbal contact to ensure you feel safe throughout the 15 minute session.

Ensuring Data Integrity and Calibration

We maintain the highest clinical standards through rigorous equipment maintenance. Every morning, our team performs a “Bio-QC” check, where a healthy staff member with known lung volumes tests the system to ensure it’s within a 3% variance of their historical baseline. We also use a 3 liter calibration syringe to verify the flow sensor’s accuracy across different speeds. These steps are essential because the plethysmography procedure relies on Boyle’s Law, which is sensitive to environmental shifts.

Interpreting Results and Clinical Documentation

Once the technical phase of the plethysmography procedure is complete, your focus shifts to the visual and numerical data on the diagnostic report. We begin by examining the TGV (Thoracic Gas Volume) loop. This loop illustrates the relationship between mouth pressure and box pressure. A precise, linear slope indicates a high-quality test; however, a “looping” or “fat” appearance suggests a phase shift or poor patient effort. When you analyze the Raw (Airway Resistance) and Gaw (Airway Conductance) slopes, you’re looking for the ease of airflow. A shallow Raw slope typically correlates with obstructive conditions where the patient struggles to move air through narrowed passages.

A restrictive pattern is identified when the Total Lung Capacity (TLC) falls below 80% of the predicted value. In these cases, you’ll see a proportional decrease across all compartments, including a low FRC and a low RV. This often points toward interstitial lung disease or chest wall deformities. On the other hand, an obstructive pattern may show a normal or even hyperinflated TLC. The clinical “red flag” here is an elevated RV/TLC ratio. If this ratio exceeds 40%, it indicates that a significant portion of the lungs remains filled with “dead air” that cannot be exhaled, a condition known as gas trapping.

Clinical teams use these specific measurements for pre-operative clearance, particularly for lung volume reduction surgery (LVRS). Candidates for this surgery generally need an RV greater than 150% of the predicted value and a TLC exceeding 100%. This data ensures that removing diseased tissue will actually improve the patient’s mechanical breathing efficiency. We understand that these numbers represent more than just data; they’re the roadmap to a patient’s improved quality of life and independence.

Key Metrics: TLC, FRC, and Residual Volume

Total Lung Capacity (TLC) represents the absolute volume of air in the lungs after a maximum inhalation. While spirometry measures what is exhaled, the plethysmography procedure captures what stays behind. Residual Volume (RV) is our most sensitive marker for early obstructive disease. It often increases long before the FEV1 begins to drop. By monitoring the RV/TLC ratio, we can quantify gas trapping with a high degree of clinical accuracy, helping you tailor treatments for COPD or emphysema more effectively.

Billing and CPT Codes for Plethysmography

Accurate documentation is essential for both clinical continuity and financial health. CPT Code 94726 is the specific designation for plethysmography. It’s distinct from CPT 94010, which only covers basic spirometry. To ensure full reimbursement in 2026, your reports must include at least three acceptable TGV maneuvers and a clear statement on the patient’s ability to follow instructions. For a deeper dive into modern coding requirements, you can refer to our 2026 Guide to CPT Codes for PFT Testing. We recommend reviewing these standards quarterly to maintain compliance with evolving HSE and private insurance guidelines.

Modernizing the PFT Lab with the Eagle 3 System

Modernizing your PFT lab requires more than just new equipment; it demands a shift toward efficiency and patient-centered care. The Eagle 3 PFT system redefines the plethysmography procedure by automating the most time-consuming elements of the test. Through advanced automated valve control, the system streamlines shutter cycles and gas stabilization. This automation reduces total procedure time by 20%, allowing your staff to focus on coaching rather than manual adjustments. In high-volume clinical settings, these minutes saved translate to better patient throughput and reduced staff fatigue.

Patient comfort is a primary driver of test accuracy. We’ve designed the Eagle 3 with large-volume, high-visibility glass cabins that provide 30% more interior space than traditional cabins. This design choice addresses the anxiety often felt by patients with claustrophobia or limited mobility. When a patient feels secure and has a clear line of sight to the clinician, they’re more likely to follow breathing instructions correctly. The result is a more reliable plethysmography procedure with fewer repeated efforts and less patient distress.

Data integrity shouldn’t be a manual task. The Eagle 3 integrates seamlessly with your hospital EMR via HL7 and DICOM protocols. We’ve eliminated the need for paper-based records by ensuring that results transfer directly from the system to the patient’s electronic chart. This connectivity reduces transcription errors and ensures that respiratory consultants can review data instantly from any authorized workstation. Our remote servicing capabilities further support your lab by allowing our engineers to perform diagnostics and software calibrations without an on-site visit, minimizing downtime in busy departments.

The Collins Medical Legacy in Respiratory Diagnostics

We’ve been at the forefront of respiratory care since 1915, moving from the development of the first iron lung to the precision of the Eagle 3. Our self-linearizing analyzers represent a significant leap in lab technology. They eliminate the need for manual gas calibration between every test, saving your team valuable time. We support clinicians with 24/7 technical care and remote diagnostic troubleshooting, ensuring your department remains operational even during peak demand periods.

Investing in Reliability and Patient Comfort

Ergonomic design directly impacts patient compliance. The Eagle 3 features an adjustable swivel arm and a low-entry threshold, making it accessible for patients using wheelchairs or those with restricted movement. To keep your lab current, we provide remote software updates that automatically align your system with the latest 2019 ATS/ERS standards. This proactive approach ensures you’re always providing care that meets global clinical benchmarks. Discover how the Eagle 3 can transform your respiratory department today.

Advancing Respiratory Care Through Diagnostic Excellence

Precision in respiratory care starts with understanding the complex mechanics of the lungs. By mastering the plethysmography procedure, your clinic ensures that patients receive the most accurate measurement of thoracic gas volume available today. Since the 1930s, Collins Medical has supported healthcare providers in delivering this gold-standard diagnostic care across Ireland. We understand that reliability is vital for your daily operations. That’s why the Eagle 3 PFT System features self-linearizing gas analyzers to maintain clinical-grade precision without the need for constant manual intervention. We also provide remote servicing capabilities to guarantee zero-downtime reliability for your facility. You deserve equipment that works as hard as you do to improve patient outcomes and long-term quality of life. Our specialists are ready to help you integrate these advanced tools into your practice with the personal touch and integrity of a family-owned business. We’re here to guide you through every technical detail so you can focus on what matters most. Request a Quote for the Eagle 3 PFT System and take the next step in enhancing your clinical capabilities. We look forward to supporting your commitment to patient health.

Frequently Asked Questions

How long does a body plethysmography procedure typically take?

A standard plethysmography procedure typically takes 15 to 30 minutes to complete. We understand your time is valuable; therefore, we ensure the process is efficient while maintaining clinical accuracy. Most of this time involves sitting inside the airtight booth while you follow specific breathing instructions from our specialists. If your consultant requires additional testing with bronchodilators, the session may extend by another 20 minutes to allow the medication to take effect.

Is plethysmography safe for patients with heart conditions or severe claustrophobia?

Plethysmography is safe for most patients, though those with unstable angina or a recent myocardial infarction within the last 30 days should consult their cardiologist first. The clear glass walls of the booth help reduce feelings of confinement for patients with claustrophobia. We maintain constant communication through an intercom system, and you can open the door at any time. If your anxiety score on the GAD-7 scale is above 15, we may suggest alternative lung volume tests.

What is the difference between plethysmography and nitrogen washout?

The main difference is that plethysmography measures the total volume of gas in your chest, whereas nitrogen washout only measures gas that communicates with your airways. Plethysmography is more accurate for patients with obstructive diseases like COPD because it captures trapped air that nitrogen washout often misses. Clinical studies show that nitrogen washout can underestimate lung volumes by as much as 15 percent in patients with severe air trapping.

Why do I have to ‘pant’ during the lung volume test?

You pant during the lung volume test to allow the equipment to measure changes in alveolar pressure against a closed shutter. This brief maneuver, usually lasting 3 to 5 seconds at a frequency of 0.5 to 1.0 Hz, helps calculate the functional residual capacity of your lungs. It’s a vital part of the plethysmography procedure because it ensures we get a precise reading of the air remaining in your lungs after a normal breath.

Can I take my inhaler before the plethysmography procedure?

You should generally avoid using your short-acting inhaler for 4 to 6 hours before the test to ensure the results reflect your baseline lung function. Long-acting bronchodilators typically require a 24-hour hold period. We always recommend checking your specific appointment letter or calling our clinic, as 90 percent of diagnostic accuracy depends on following these pre-test instructions. If you experience acute respiratory distress, use your medication immediately and we’ll reschedule your session.

What does it mean if my Residual Volume (RV) is too high?

A Residual Volume (RV) that exceeds 120 percent of the predicted value often indicates air trapping or lung hyperinflation. This is frequently seen in conditions like emphysema or chronic bronchitis where air becomes stuck in the lungs after exhaling. Our clinical team uses these specific measurements to help your doctor determine the severity of your condition and tailor a treatment plan that improves your daily comfort and independence.

Is there a weight limit for the body plethysmography box?

Most modern body plethysmography booths have a weight capacity ranging from 135kg to 159kg, depending on the specific model used. The physical dimensions of the cabinet usually measure about 70cm in width, which accommodates the majority of patients comfortably. If you have concerns about the space or weight limits, please contact us so we can provide the exact specifications for the equipment at your testing location.

How often should a plethysmograph be calibrated for clinical accuracy?

We calibrate the plethysmograph every morning and perform a volume verification check before each new patient. Standard clinical guidelines from the ATS and ERS require that pressure transducers and flow sensors meet a 3 percent accuracy threshold. These daily checks ensure that your results are reliable and consistent. Our commitment to these technical standards allows us to provide the highest level of care for your respiratory health.
