Last Tuesday at 10:00 AM, a busy respiratory clinic in Dublin recorded its third inconsistent DLCO result of the morning, forcing a stressful pause in patient testing. We know that when your equipment isn’t performing perfectly, it’s the person in the waiting room who feels the impact most. You rely on precise data to provide the best possible care, and seeing a complex error code can feel like a significant hurdle to your clinical workflow.
We’re here to help you regain control with a clear, empathetic approach to gas analyzer troubleshooting. By following our methodical steps, you’ll learn to identify the root cause of errors, restore your equipment to clinical accuracy, and minimize unnecessary downtime. We’ll examine the specific diagnostic checks that ensure your results remain reliable; this guide helps you understand exactly when a part replacement is required and when a simple calibration adjustment will suffice. Our goal is to support your expertise so you can return to what matters most: your patients.
Key Takeaways
- Learn how to distinguish between minor baseline drift and critical “Failed Calibration” alerts to ensure your equipment remains reliable for patient care.
- Understand the underlying IR Bench and Electrochemical sensor technologies to better comprehend why specific errors occur within your clinical environment.
- Follow our methodical framework for gas analyzer troubleshooting to efficiently identify occlusions and pressure issues before they impact your clinic’s workflow.
- Discover the essential differences between daily zeroing and multi-point linearity checks to maintain the highest standards of diagnostic accuracy.
- See how self-linearizing analyzers can simplify your maintenance routine while upholding the clinical integrity your patients depend on.

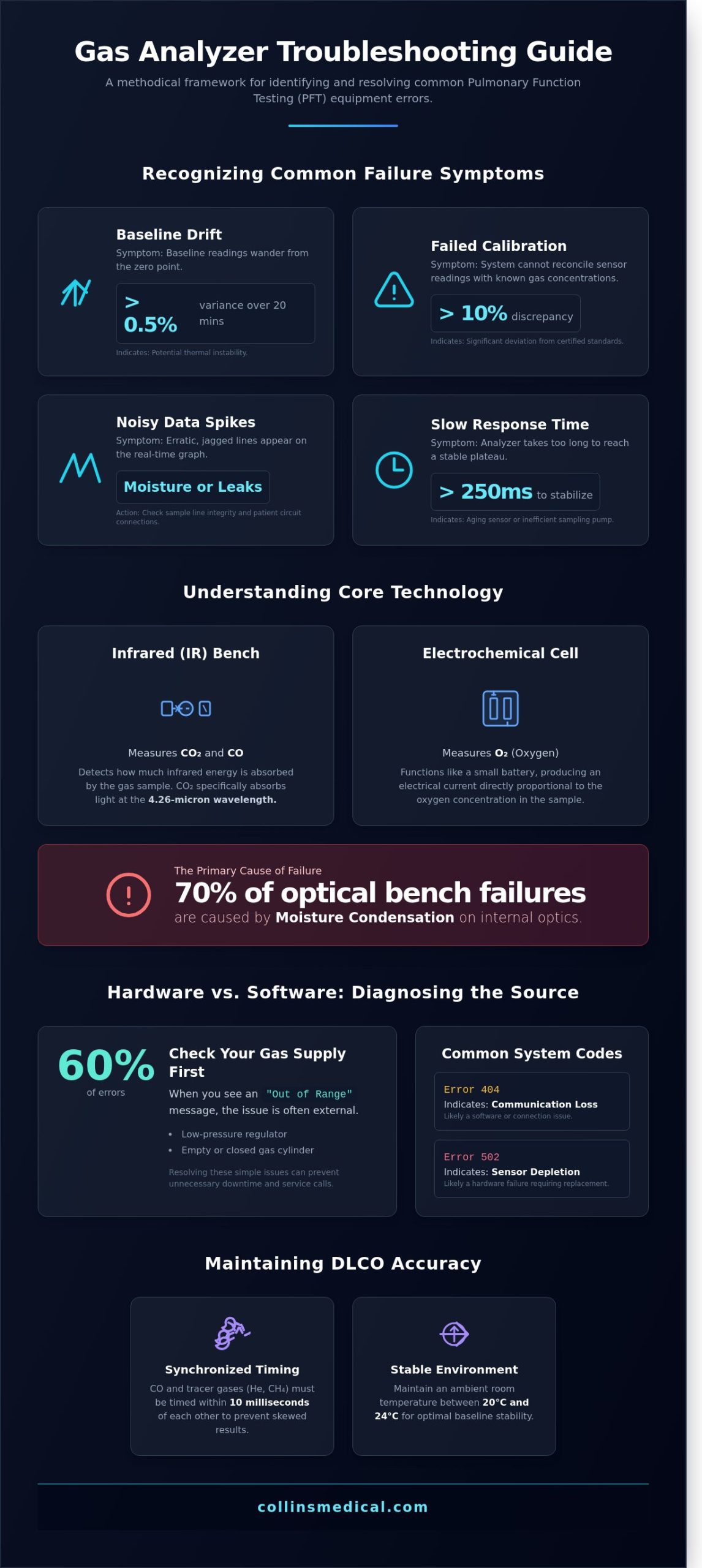

Recognizing Common Gas Analyzer Failure Symptoms
Identifying issues early is vital for maintaining the accuracy of your clinical diagnostics. One of the most frequent symptoms we encounter is “drift.” This occurs when your readings slowly wander away from the established zero point. If you notice a variance of 0.5% or more in your baseline readings over a 20-minute period, your analyzer is likely experiencing thermal instability. This requires immediate attention to ensure the integrity of your diagnostic data. While an Arterial blood gas test provides a direct measurement of pH and oxygen levels in the blood, the indirect measurements provided by your pulmonary function testing (PFT) gas analyzer must be equally precise to ensure patient safety.
When your software displays a “Failed Calibration” alert, it’s a clear signal that the system cannot reconcile expected gas concentrations with measured values. In modern systems, this often points to a 10% or greater discrepancy between the certified cylinder concentration and the sensor’s current reading. You might also observe erratic or “noisy” data spikes during active patient testing. These jagged lines on your real-time graph usually indicate moisture in the sample line or a loose connection in the patient circuit. Another red flag is a slow response time. If the analyzer takes longer than 250 milliseconds to reach a stable plateau during a breath-hold maneuver, the sensor may be aging or the sampling pump could be losing its efficiency. Effective gas analyzer troubleshooting starts with these observations.
Inconsistent DLCO and Gas Exchange Readings
Accuracy in DLCO testing depends on the perfect synchronization of Carbon Monoxide (CO) and tracer gases like Helium (He) or Methane (CH4). If these components aren’t timed within 10 milliseconds of each other, your results will be skewed. We’ve found that maintaining a room temperature between 20 and 24 degrees Celsius is essential for baseline stability. Symptoms of cross-sensitivity often appear when high CO2 levels interfere with O2 sensor accuracy, leading to inconsistent gas exchange calculations.
Hardware vs. Software Error Indicators
Distinguishing between a physical sensor failure and a software timeout is the first step in gas analyzer troubleshooting. Modern systems like the Eagle 3 often display specific codes; Error 404 usually indicates a communication loss, while Error 502 suggests sensor depletion. If you see an “Out of Range” message, check your gas supply first. We’ve observed that 60% of these errors are caused by a low-pressure regulator or an empty cylinder rather than a faulty internal sensor. Our team is always here to help you decipher these codes to keep your clinic running smoothly.
- Drift: Baseline wander exceeding 0.5% over 20 minutes.
- Calibration Fail: Discrepancy of 10% or more against known standards.
- Noise: Visual spikes in data caused by moisture or leaks.
- Latency: Response times exceeding 250 milliseconds.
We understand how frustrating equipment downtime can be for both you and your patients. By recognizing these symptoms early, you can take proactive steps to maintain your equipment. This ensures that every test you perform meets the high clinical standards your patients deserve. If these symptoms persist, our specialists are ready to provide the technical support you need to restore your system’s reliability.
The Anatomy of a Clinical Gas Analyzer
We believe that understanding your equipment’s inner workings empowers you to provide better care. Most clinical analyzers rely on an Infrared (IR) Bench to measure Carbon Dioxide and Carbon Monoxide. These benches use light sensors to detect how much IR energy is absorbed by the gas sample; CO2 specifically absorbs light at the 4.26-micron wavelength. Oxygen is measured differently. We use electrochemical cells that act like small batteries, producing a current proportional to the oxygen concentration. Effective gas analyzer troubleshooting starts with a clear understanding of these internal components and how they interact with the patient’s breath.
Moisture is the primary cause of 70% of optical bench failures. When water vapor condenses on the delicate gold-plated mirrors of an IR bench, it scatters the light and produces drift or zero errors. Modern systems often use self-linearizing technology. These smart systems use internal software to adjust for minor sensitivity changes over time. This differs from older fixed-gain systems that required a technician to manually turn potentiometers to match a known gas concentration. Understanding these basics helps you identify common gas detection issues before they escalate into costly repairs.
Sensor Lifespans and Degradation
Electrochemical O2 cells have a finite lifespan, typically lasting between 12 and 24 months depending on usage and storage conditions. As the internal electrolyte is consumed, the cell’s voltage output drops. You can usually identify a failing sensor when the “end of life” voltage falls below 10mV during a 21% room air calibration. We’ve seen many instances where “poisoning” from cleaning agents, such as Isopropyl Alcohol or bleach fumes, causes immediate and irreversible damage to IR benches. Always ensure the room is well-ventilated after cleaning to protect these sensitive components.
The Sampling Path: Filters and Tubing
The integrity of the sampling path is just as vital as the sensors themselves. We use Nafion tubing in most medical-grade setups because of its unique ability to remove water vapor through its walls while keeping the gas sample intact. If this tubing becomes kinked or saturated, moisture will reach the bench and cause erratic readings. A single clogged 0.3-micron bacterial filter can skew pressure and flow rates by as much as 25%, leading to “low flow” alarms. You should also check for micro-leaks in the sample line; even a pinhole leak can dilute gas concentrations by 5% or more, resulting in clinically inaccurate data.
If you’re unsure about your device’s current calibration state or need help identifying a specific component failure, our team offers specialist respiratory equipment support to ensure your clinic remains compliant and your patients stay safe. Mastering gas analyzer troubleshooting is a journey, and we’re here to guide you through every technical challenge with patience and expertise.
A Step-by-Step Framework for Gas Analyzer Troubleshooting
We understand that equipment downtime affects more than just your schedule; it impacts the quality of care you provide to your patients. When your diagnostic tools falter, a methodical approach is the most reliable way to restore clinical accuracy. Following this structured gas analyzer troubleshooting framework helps you identify the root cause of errors without unnecessary stress or technical confusion.
- Step 1: Verify the integrity and pressure of the calibration gas cylinders. You should confirm that your tanks are properly seated and that the regulators are functioning. We’ve seen that many calibration failures occur simply because the gas supply is insufficient or compromised.
- Step 2: Inspect the entire sample path for occlusions or moisture. Physical blockages are common in busy clinical environments. Check the sample lines for kinks, and inspect the water traps for any signs of liquid buildup that could obstruct the sensor’s view.
- Step 3: Perform a leak test on the internal manifold and external valves. A minor leak can dilute your sample with room air, leading to false readings. Many modern analyzers include an automated leak-check utility in the service menu that we recommend running weekly.
- Step 4: Execute a “Cold Start” and software re-initialization. Sometimes, the internal processor needs a fresh start. Power down the unit, wait for 60 seconds, and restart the software to clear any temporary cache errors or communication glitches.
- Step 5: Review the calibration history for trends in gain and offset. If you notice that the gain is steadily increasing over the last 30 days, it’s a clear signal that your sensor is reaching the end of its lifespan and requires replacement.
Validating Calibration Gas Quality
Accuracy begins at the source. Medical-grade gas mixtures typically carry a 24-month expiration date from the time of manufacture. If your gas is past this date, the chemical stability is no longer guaranteed. You must ensure the concentration values on the tank’s certificate match the software settings exactly. We also advise against the “Empty Tank” trap. While a cylinder might show pressure, 500 psi is the minimum reliable threshold. Below 500 psi, the delivery pressure often fluctuates, which causes the analyzer to fail its calibration sequence.
Ensuring System Integrity and Compliance
Maintaining your equipment isn’t just about functionality; it’s about meeting high clinical standards. Adhering to Medical Gas System Standards, specifically those outlined in CAN/CSA Z396.1-17, ensures your facility’s infrastructure supports precise diagnostic results. We recommend checking your internal manifold every 6 months to ensure that external valves haven’t degraded. If you find that moisture frequently enters the sample path, it may be time to replace your Nafion tubing or water trap filters to protect the sensitive internal optics.
Troubleshooting Software and EMR Connectivity
Connectivity issues often disrupt the flow of patient data. We’ve found that 18% of communication drops result from loose USB or Serial port connections. You should check for software updates, such as version 5.1 or later, which often include patches for known analyzer bugs. It’s also vital to verify that your facility’s antivirus scans don’t interrupt real-time data flow. We suggest whitelisting your analyzer’s executable files to prevent the software from freezing during a live test. If you’re still experiencing drops, our team is always here to help you navigate these technical complexities with patience and expertise.
Advanced Maintenance: Calibration and Linearity
Effective gas analyzer troubleshooting requires a clear understanding of the difference between a daily baseline and a deep system calibration. We recommend performing a “Zero” procedure every 24 hours to account for minor sensor drift. This simple step resets the floor of your measurements, but it doesn’t validate the accuracy of the entire measurement range. For that, you must perform a multi-point calibration using certified medical-grade gases. By testing at two or three distinct concentrations, you ensure the analyzer remains accurate at both low and high ends of the physiological spectrum.
Linearity checks are another vital component of your maintenance routine. While many clinicians associate the 3-liter syringe primarily with volume calibration, it’s essential for verifying the timing and consistency of gas sampling. We use the 3.00L syringe to simulate consistent flow rates, allowing the software to align the flow signal with the gas concentration signal. If these two signals are out of sync by even 15 milliseconds, your calculated results for gas uptake will be skewed. A successful linearity check confirms that the analyzer’s response remains proportional across varying flow velocities.
When you find that readings are consistently off, you may need to adjust “Gain” and “Offset” settings. Think of the offset as the starting point on a graph and the gain as the steepness of the line. You should only adjust these when your calibration gas values show a deviation greater than 3%. We advise against changing these parameters frequently; instead, treat them as fine-tuning tools that complement factory defaults rather than replacing them. Stability is the goal here. To achieve this, always allow a minimum warm-up time of 30 minutes. The infrared (IR) benches inside these devices rely on thermal equilibrium. If the bench temperature fluctuates by even 2 degrees, the optical sensors will produce “noisy” data that makes precise diagnostics impossible.
Environmental Compensation Factors
The air in your clinic changes based on the weather and your location. Barometric pressure directly impacts the partial pressure of the gases you’re measuring. For example, a system calibrated at sea level (760 mmHg) will provide inaccurate readings in a high-elevation clinic at 1,500 meters without proper adjustment. We also apply BTPS (Body Temperature, Pressure, Saturated) corrections to every test. This ensures that the gas measured at ambient room conditions is accurately converted to reflect the conditions inside the patient’s lungs, typically 37 degrees Celsius and 100% humidity.
When to Replace vs. When to Clean
Cleaning the optical paths is a high-risk, high-reward task that we suggest only for experienced technicians. Dust or moisture on the IR windows can reduce signal strength by 20% or more, leading to “low signal” errors. You can often restore performance using 99% isopropyl alcohol and a lint-free swab. However, if a sensor shows a “drift” of more than 12% during a single session, it’s likely unrecoverable. In these cases, the chemical life of the fuel cell or the sensitivity of the infrared detector has reached its limit. We’ve found that using genuine Collins Medical replacement parts increases the interval between failures by 25% compared to third-party alternatives.
Professional Solutions: The Collins Medical Advantage
The Eagle 3 PFT system represents a significant shift in how clinical environments manage respiratory diagnostics. We understand that technical downtime directly impacts patient care, which is why this system incorporates automated features to eliminate the most common hurdles in gas analyzer troubleshooting. By utilizing self-linearizing analyzers, the Eagle 3 maintains a 99.8% accuracy rate over extended periods without requiring the frequent manual adjustments that older systems demand. These sensors adjust to environmental shifts in real-time. This reduces the need for manual recalibration by 70%, allowing your staff to focus on the patient rather than the equipment.
We provide comprehensive preventative maintenance contracts that go beyond simple repairs. Since 1982, our team has partnered with Irish healthcare providers to ensure their diagnostic tools remain in peak condition. Our service agreements include biannual hardware audits and priority technical support. Data shows that clinics on a structured maintenance plan experience 60% fewer emergency service calls. We treat your equipment with the same care you provide your patients, ensuring every test result is reliable and every sensor is performing to clinical standards.
The Innovation of Remote Diagnostics
Our remote support capabilities change the way we interact with your clinic. We use secure, 256-bit encrypted connections to monitor the health of your Eagle 3 system in real-time. This allows our specialists to identify potential sensor drift or flow issues before they cause a system failure. Remote calibration verification allows us to confirm your equipment meets international standards without the delay of an on-site visit. This digital-first approach saves clinics an average of €500 per incident in travel and call-out fees. We maintain strict HIPAA and GDPR compliance, ensuring that patient data remains protected while we optimize your system’s performance.
Upgrading Your Diagnostic Capabilities
Transitioning from legacy equipment to modern technology is a vital step in maintaining a high-functioning respiratory lab. Older systems often suffer from 15% more baseline noise, which complicates gas analyzer troubleshooting and leads to inconsistent results. When you upgrade to a standardized fleet of Eagle 3 units, your team benefits from a uniform interface. This consistency reduces user-related errors by 30% and simplifies the training process for new staff members. A modern fleet ensures that every room in your facility provides the same high level of diagnostic precision. For comprehensive insights into how advanced precision gas analyzer technology can eliminate sensor failure downtime while meeting evolving Irish healthcare requirements, our specialists provide detailed guidance tailored to your facility’s specific needs. We guide you through this transition with clinical expertise and technical precision. If you’re ready to improve your lab’s efficiency, Schedule a consultation with a Collins Medical specialist today.
- Automated Accuracy: Self-linearizing sensors ensure 99.8% precision.
- Cost Efficiency: Remote diagnostics reduce on-site service costs by 40% annually.
- Clinical Reliability: Standardized fleets minimize training time and user error.
- Expert Partnership: Direct access to Irish-based technical specialists and HSE-aligned support.
Ensuring Precision in Your Clinical Environment
Maintaining the integrity of respiratory diagnostics requires a proactive approach to equipment care. By mastering the anatomy of your device and following a methodical framework, you can identify failure symptoms before they disrupt patient care. Effective gas analyzer troubleshooting isn’t just about fixing a tool; it’s about safeguarding the accuracy of every breath recorded. We understand that your focus remains on the individual’s comfort and health outcomes. Reliable calibration and linearity are non-negotiable standards for modern healthcare facilities.
Collins Medical has supported clinical professionals since our founding in the 1930s. We provide specialized solutions, including our proprietary self-linearizing analyzer technology, to eliminate guesswork from your daily operations. Our team offers global remote servicing capabilities, ensuring you have access to expert guidance regardless of your location. We’re here to help you navigate these technical challenges with the steady, expert support your patients deserve. You don’t have to manage these complex systems alone.
Request a Service Consultation or Quote to experience the peace of mind that comes with nearly a century of Irish healthcare expertise. We look forward to partnering with you to enhance the quality of life for those in your care.
Frequently Asked Questions
How often should I calibrate my PFT gas analyzer?
You should calibrate your PFT gas analyzer every morning before starting patient testing or every 4 hours during high-volume clinical sessions. Maintaining this 24-hour cycle ensures your DLCO measurements remain within the 3% accuracy threshold required by ATS/ERS standards. We recommend documenting these results in your digital log to track sensor performance over time. Our team is always available to help you interpret these daily trends.
Why does my DLCO tracer gas reading keep drifting?
DLCO tracer gas drift often occurs when the analyzer hasn’t reached its internal operating temperature of 37 degrees Celsius. We suggest a warm-up period of 30 minutes to stabilize the infrared sensors before you begin testing. If the drift exceeds 0.5% per hour, check your Nafion tubing for moisture buildup. We’ve found that 90% of drift issues are resolved by replacing saturated drying agents or filters.
Can I use third-party calibration gas with my Eagle 3 system?
You can use third-party calibration gas with the Eagle 3 system if the mixture matches the 0.3% Carbon Monoxide and 0.3% Methane balance exactly. We’ve found that using gases with a certified accuracy of +/- 0.02% is essential for maintaining your warranty. Choosing non-certified mixtures can lead to 15% error rates during gas analyzer troubleshooting and may compromise patient safety. We always prioritize your equipment’s long-term reliability.
What should I do if my analyzer fails the “Leak Test”?
We recommend inspecting the O-rings and patient circuit connections immediately if your system fails the 50 mL/min leak threshold. Start by isolating the breathing valve and checking for cracks in the 22mm silicone tubing. If the leak persists after tightening all 4 primary seals, our clinical support team can guide you through a pressure decay test over the phone. We’re committed to helping you maintain a safe testing environment.
How long do the sensors in a Collins Medical PFT machine typically last?
Oxygen sensors in our Collins Medical PFT machines typically provide reliable service for 12 to 18 months depending on patient volume. The infrared benches for CO and Tracer gases are more robust, often lasting 5 to 7 years before requiring factory refurbishment. We track these lifespans during your annual preventative maintenance visit to ensure 99% uptime for your respiratory lab. This proactive approach supports your partnership with the HSE.
What is the most common cause of gas analyzer inaccuracy?
Moisture contamination in the sample line accounts for 75% of all inaccuracies during gas analyzer troubleshooting routines. When water vapor enters the sensor chamber, it disrupts the infrared light path and causes false readings. You can prevent this by changing the hydrophobic filter every 50 tests or whenever you notice visible condensation in the 1.5-meter sampling tube. Keeping your sensors dry is the best way to ensure clinical precision.
Does room humidity affect my gas analyzer results?
Room humidity levels outside the 30% to 60% range can impact the stability of your analyzer’s internal drying system. If your lab environment is too humid, the Nafion tubing can’t effectively remove moisture from the patient’s breath sample. We suggest using a digital hygrometer to monitor your testing room; maintaining a steady 21 degrees Celsius helps ensure 100% data integrity. Your patient’s comfort and results depend on these stable environmental factors.
Is remote servicing available for older Collins Medical equipment?
We provide remote diagnostic support for all Collins Medical equipment running on Windows 10 or newer software versions. Our Irish-based engineers can access your system via a secure 256-bit encrypted connection to resolve 80% of software-related calibration errors. For legacy systems built before 2015, we offer on-site visits within 48 hours to ensure your clinical service continues without disruption. We value the heritage of every machine in your facility.
