According to the 2023 ERS/ATS standards, relying solely on gas dilution methods for patients with severe air trapping can lead to an underestimation of Total Lung Capacity by as much as 15% to 20%. You’ve likely seen how these technical discrepancies complicate treatment plans for complex obstructive cases. We understand that your priority is delivering a precise diagnosis without compromising the patient’s experience, especially when traditional “boxes” often trigger claustrophobia. Achieving the gold standard in diagnostic accuracy requires a body plethysmograph that balances technical sophistication with a human-centered design.

We agree that the transition to advanced testing should be seamless for both the clinician and the individual in your care. This guide will help you discover the clinical principles, technical requirements, and significant diagnostic advantages of integrating modern plethysmography into your practice. We’ll examine how automated calibration and high-visibility glass enclosures can streamline your workflow and improve patient comfort by 40% compared to older, opaque systems. You’ll gain a clear roadmap for implementing these advanced lung volume tests to ensure every patient receives the reliable, expert care they deserve.

What is a Body Plethysmograph? The Gold Standard of Lung Diagnostics

A body plethysmograph is the most sophisticated tool we use to understand the full capacity of your respiratory system. It is an airtight cabin, often called a “body box,” designed to measure absolute lung volumes with incredible precision. While the earliest versions of this technology were inspired by the bulky iron lungs of the 1930s, the 2026 diagnostic cabins we utilize are streamlined, patient-centered environments. We view this device as the gold standard because it provides a complete diagnostic profile that simpler tests cannot replicate. Our team relies on this equipment to provide the clear, actionable data you need to manage your health with confidence.

The primary clinical advantage of this method lies in its ability to measure Thoracic Gas Volume (TGV). This measurement accounts for every cubic centimeter of air within your chest, including gas trapped behind collapsed or obstructed airways. By using a Plethysmograph to monitor minute pressure changes, we can calculate your lung’s total capacity based on the principles of Boyle’s Law. This ensures that no part of your respiratory health is left to guesswork, even if you are struggling with severe airway resistance. It’s a level of detail that provides peace of mind for both the clinician and the patient.

The Clinical Necessity of the “Body Box”

We frequently use this technology because spirometry alone cannot measure Residual Volume (RV). This is the air that remains in your lungs even after a maximal exhalation. Without a precise RV measurement, clinicians cannot reliably distinguish between restrictive and obstructive lung diseases. For instance, in 2026, clinical data suggests that approximately 12% of patients with complex respiratory symptoms require plethysmography for accurate lung volume assessment to confirm a diagnosis of pulmonary fibrosis. It allows us to see the “hidden” air, providing the clarity needed to create a supportive and effective care plan for you. We believe that understanding these nuances is the first step toward improving your daily quality of life.

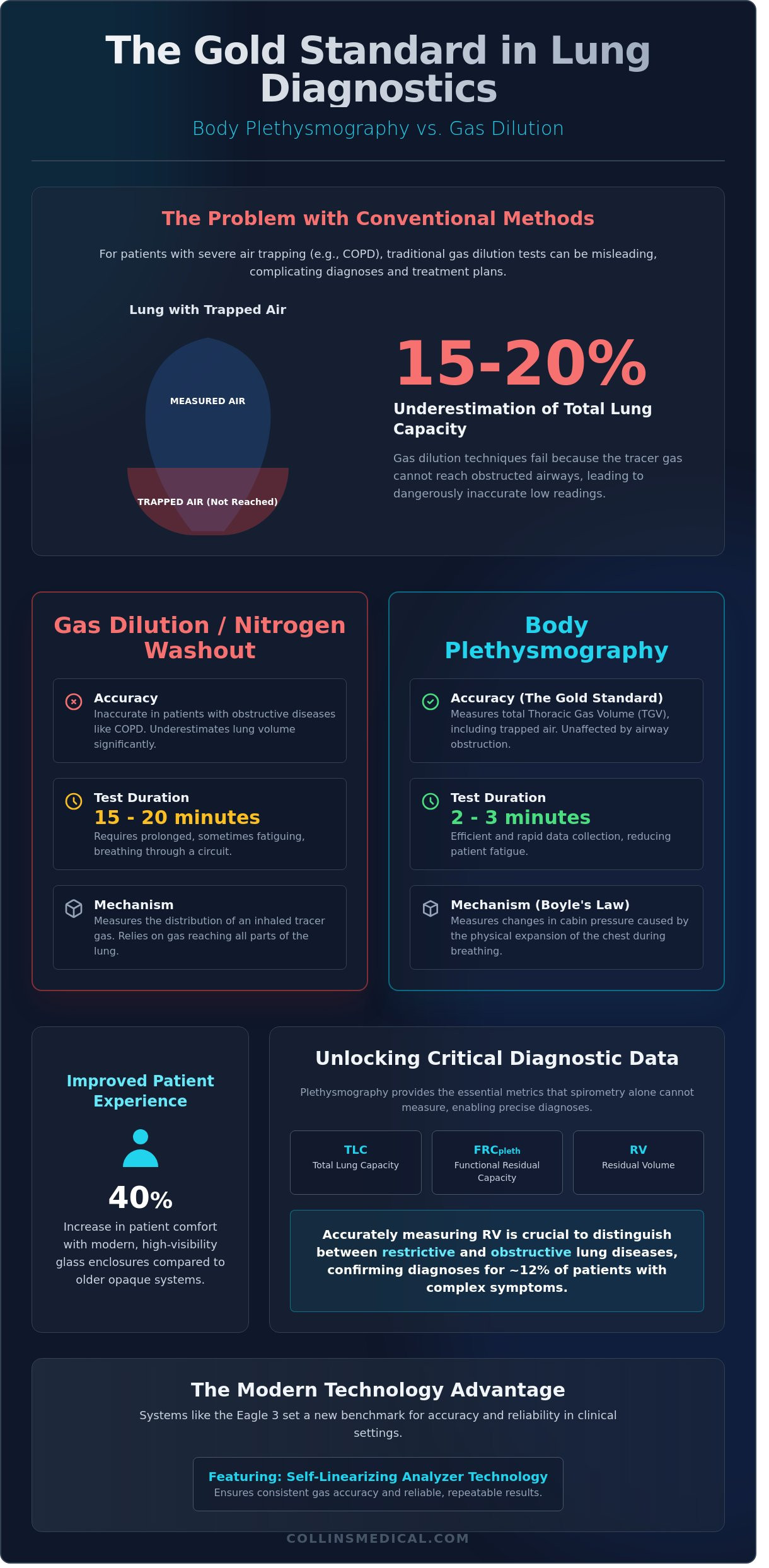

Plethysmography vs. Gas Dilution Techniques

When comparing diagnostic methods, plethysmography offers superior accuracy over gas dilution or nitrogen washout, especially for patients with uneven ventilation. In cases of severe COPD, gas dilution techniques often underestimate total lung capacity by 15% to 20% because the tracer gas cannot reach blocked areas of the lung. The body plethysmograph avoids this error entirely because it measures the physical expansion of the thoracic cage rather than the movement of a specific gas. This makes it the most reliable option for patients with significant structural changes in their lungs.

Time is also a vital factor in your comfort. A nitrogen washout test can require you to breathe through a circuit for up to 15 or 20 minutes. In contrast, a plethysmographic measurement is typically completed in just 2 to 3 minutes. This efficiency reduces patient fatigue and allows us to gather high-quality data quickly. Because this method does not rely on your gas exchange capacity, it remains a reliable diagnostic tool even when lung function is significantly impaired. We are committed to using these advanced insights to ensure you receive the most accurate assessment possible. If you have questions about how these diagnostics fit into your care, our specialists are always available to provide guidance and support.

The Physics of the Box: How Boyle’s Law Powers Diagnostic Accuracy

Understanding the mechanics of a body plethysmograph requires a look at a fundamental principle of physics known as Boyle’s Law. This law states that the pressure and volume of a gas have an inverse relationship when temperature remains constant; mathematically, this is expressed as P1V1 = P2V2. In a clinical setting, we place you inside a sealed, airtight cabin to apply this principle directly to your respiratory health. When you inhale, your chest expands, which increases your lung volume and simultaneously decreases the air volume remaining in the cabin. This tiny shift in cabin volume causes a measurable increase in box pressure, allowing us to calculate exactly how much air is in your lungs, including the air that doesn’t move during normal breathing.

Shift volume is the mirror-image pressure variation between the lung and the box. This measurement is critical because it serves as the bridge between the external environment of the cabin and the internal environment of your thoracic cavity. To ensure these readings are precise, the hardware must meet rigorous standards. We use cabins constructed from 12mm thick tempered glass or high-grade plexiglass to create a “rigid” environment. If the walls were to flex even by 1 or 2 millimeters during the test, the resulting pressure data could be skewed by as much as 5%, leading to potential misdiagnosis. This structural integrity is what allows the sensors to detect pressure changes as minute as 0.01 cmH2O.

Constant Volume vs. Variable Pressure Cabins

Most modern clinical settings utilize pressure-type plethysmographs, also known as constant volume cabins. These systems are designed to detect pressure fluctuations while the physical volume of the box stays the same. In contrast, flow-type or volume-displacement systems, which were more common in the late 20th century, use a moving bellows to measure actual volume changes. While flow-type systems are technically accurate, they’re often bulkier and more sensitive to external movement. Thermal compensation is a vital component in modern pressure measurements. Since a temperature change of just 1 degree Celsius can alter pressure readings by roughly 0.3%, we use sophisticated software algorithms to stabilize the “thermal drift” caused by your body heat during the five-minute testing period.

The Shutter Maneuver Explained

The shutter maneuver is the most important part of the diagnostic process. During this step, we’ll ask you to pant gently against a closed mouthpiece for 2 to 3 seconds. This temporary blockage creates a state of “zero flow.” When there’s no air moving, the pressure measured at your mouth is identical to the pressure deep within your alveoli. This allows us to use Boyle’s Law to solve for the unknown volume of air in your chest. According to the Body Plethysmography clinical standards established by the NIH, this maneuver is the most reliable way to determine Functional Residual Capacity (FRC).

• Step 1: You’ll begin with normal, quiet breathing to establish a steady baseline.
• Step 2: At the end of a normal breath, the electronic shutter closes briefly.
• Step 3: You’ll perform a series of gentle, rapid panting breaths against the resistance.
• Step 4: The sensors record the “shift volume” data to calculate your total lung capacity.

Technical errors can sometimes interfere with these results. For instance, if a patient “puffs” their cheeks during the maneuver, it can create a 10% to 15% error in the pressure readings. We’ll guide you through the process with patience to ensure your hands are placed firmly on your cheeks to prevent this. If you’re a healthcare provider looking to upgrade your diagnostic suite, our specialists at Collins Medical can help you select equipment that offers the highest level of pressure sensitivity and patient comfort.

Essential Clinical Metrics: Interpreting Plethysmography Results

Understanding the data from a body plethysmograph allows us to provide you with a clear, actionable picture of your respiratory health. The core of this assessment is the Functional Residual Capacity (FRCpleth). We consider this metric the bedrock of volume calculation. It measures the total gas volume in your chest at the end of a normal breath, including air trapped behind closed airways. This is a level of detail that standard spirometry cannot reach, making it indispensable for accurate diagnosis.

We look closely at Total Lung Capacity (TLC) and Residual Volume (RV) to understand how your lungs occupy space in the chest cavity. When your RV is elevated, it typically indicates air trapping. This occurs when air stays stuck in the lungs after you finish exhaling. In our clinical experience, we’ve found that the NIH on Body Plethysmography provides the most reliable framework for understanding how these volumes fluctuate during disease progression. By comparing your results to predicted values, we can see exactly how much your lung function deviates from the healthy baseline for your age and height.

The RV/TLC ratio has become a critical diagnostic marker in 2026 respiratory care. A ratio that exceeds the upper limit of normal, often cited as being above 35 percent in older adults, helps us identify hyperinflation before it becomes symptomatic. We use this ratio to track the effectiveness of your treatment over time. If your ratio decreases by 10 percent after a new therapy starts, we know we’re successfully reducing the “dead space” in your lungs, which directly improves your comfort and stamina.

Measuring Airway Resistance (Raw)

Airway Resistance, or Raw, represents the pressure difference required to establish a specific flow rate through your bronchial tubes. It’s a direct look at how much effort you need to breathe. We also measure Specific Airway Resistance (sRaw), which is a vital measure of respiratory work because it accounts for the volume at which the measurement is taken. These metrics help us differentiate between conditions. For example, we often see Raw improve by 30 percent or more after bronchodilator use in asthma patients, whereas COPD patients typically show more fixed, persistent resistance levels. This clarity helps us choose the right medication for your specific needs.

Identifying Lung Hyperinflation and Restriction

We use TLC measurements to confirm restrictive patterns, such as those found in pulmonary fibrosis or chest wall deformities. Under the latest 2026 ATS/ERS standards, a TLC below the 5th percentile of the lower limit of normal is the definitive gold standard for confirming restriction. Conversely, we monitor elevated RV levels to quantify air trapping in obstructive patients. If your RV is 120 percent of the predicted value, it’s a clear signal that your lungs are overinflated. We provide these detailed reports to your consultant to ensure your care plan is based on precise, high-quality data. Our team is always here to walk you through these numbers, ensuring you feel supported and informed at every step of your journey toward better breathing.

Evaluating Body Plethysmograph Systems: A Buying Guide for Clinics

The Collins Advantage: Precision Engineering and the Eagle 3 System

We’ve spent decades refining the tools that clinicians rely on every day. The Eagle 3 system stands as the culmination of that journey, representing the most advanced body plethysmograph in our current diagnostic portfolio. It’s designed to provide the high-resolution data required for complex pulmonary assessments while maintaining a user-friendly interface for both the technician and the patient. At its core, the Eagle 3 is built to handle the rigorous demands of a high-volume respiratory lab without sacrificing the delicate accuracy needed for early disease detection.

The Eagle 3 utilizes a proprietary Self-Linearizing Analyzer. This technology is a significant leap forward because it automatically adjusts for gas concentration shifts in real-time. In standard testing environments, sensor drift can lead to inaccuracies of 3% to 5% over a single shift. Our system compensates for these variables, ensuring that your results remain consistent from the first patient in the morning to the last one in the evening. By removing the need for frequent manual recalibrations, we help your team focus on patient care rather than equipment maintenance.

Our commitment to your facility extends far beyond the initial installation. We support institutions across the globe from our primary hubs in Ashford, Co. Wicklow, and Hopedale, Massachusetts. This dual-continent presence allows us to provide specialized technical assistance across multiple time zones. We understand that clinical downtime isn’t just a logistical headache; it’s a barrier to patient recovery. That’s why our remote servicing capabilities are integrated into every unit we ship, allowing our engineers to resolve over 80% of software-related queries through secure, real-time diagnostic portals.

Innovation in Software and Remote Support

The software driving the Eagle 3 simplifies the complex mathematics of respiratory physics. It automates Boyle’s Law calculations instantly, providing clinicians with immediate access to Functional Residual Capacity (FRC) and Thoracic Gas Volume (TGV) data. We’ve designed the interface to integrate seamlessly with existing hospital Information Systems. This means your data flows directly into the patient’s electronic health record, reducing the risk of transcription errors. If a technical hurdle arises, our remote support team can access the system’s heartbeat to troubleshoot performance issues before they impact your daily schedule.

Quality and Reliability Since the 1930s

The legacy of Warren E. Collins, Inc. is woven into the fabric of modern respiratory medicine. Since the 1930s, when the company pioneered the first clinical iron lung, the Collins name has been synonymous with life-saving innovation. We don’t use the term “precision-engineered” lightly. It reflects a manufacturing process where every valve, seal, and sensor is tested against 100 years of clinical standards. This heritage ensures that when you invest in our hardware, you’re gaining a partner that understands the nuances of the Irish healthcare landscape and the global medical community.

Advancing Patient Care Through Precision Diagnostics

Choosing the right body plethysmograph is a critical step in providing comprehensive respiratory assessments. By moving beyond basic spirometry, your clinic gains the ability to measure absolute lung volumes and airway resistance with the accuracy your patients deserve. This transition ensures that diagnostic decisions are based on the gold standard of pulmonary function testing, rooted in established clinical physics.

We’ve been dedicated to respiratory innovation since the 1930s, a legacy that began when we invented the first iron lung. Today, our Eagle 3 system incorporates proprietary self-linearizing gas analyzer technology to provide the reliability you need for complex cases. Our team supports your practice with global remote servicing, so you’re never alone in maintaining these vital tools. We believe that better technology leads to better lives, and we’re proud to be your partner in this journey toward improved patient outcomes.

Request a Quote for the Eagle 3 PFT System

We look forward to helping you enhance your diagnostic capabilities and provide the high level of care your community relies on.

Frequently Asked Questions

What is the difference between body plethysmography and spirometry?

A body plethysmograph measures the total amount of air your lungs can hold, while spirometry only measures the air you can actively exhale. Spirometry typically misses 20% to 30% of the total lung capacity that this advanced testing captures. We use the airtight cabin to account for thoracic gas volume that simple flow meters can’t detect, providing a more complete picture of your respiratory health and comfort.

Why is body plethysmography called the “Gold Standard” for lung volumes?

This method is the gold standard because it uses Boyle’s Law to measure absolute lung volumes with an accuracy rate within 2% to 3%. Unlike helium dilution, which often underestimates volumes in patients with trapped air, this technique captures 100% of the gas within the thorax. It provides the most precise data available for clinicians to differentiate between restrictive and obstructive lung patterns during a single session.

Does a patient feel claustrophobic inside the plethysmograph box?

You might feel a brief moment of confinement, but modern cabins feature large glass panels and 360-degree visibility to reduce any sense of anxiety. Most patients spend less than 3 minutes inside the closed booth for the actual measurements. Our clinical team maintains constant verbal contact through an integrated intercom system, ensuring you feel supported and safe throughout the entire testing process.

How long does a typical body plethysmography test take?

A typical test takes between 15 and 30 minutes to complete from start to finish. This timeframe includes the initial setup, patient coaching, and three to five successful breathing maneuvers to ensure data reliability. You’ll only need to be inside the actual testing cabin for approximately 5 minutes of that total duration, allowing for a quick and efficient assessment of your lung function.

What are the contraindications for performing this test?

Patients shouldn’t perform this test if they’ve had abdominal or thoracic surgery within the last 30 days. Other contraindications include a recent myocardial infarction within 4 weeks or the presence of an unstable pneumothorax. We always review your medical history to ensure your safety, as the pressure changes required during the test can place temporary stress on recently healed surgical sites or delicate tissues.

How often does a body plethysmograph require professional calibration?

A body plethysmograph requires professional biological and mechanical calibration every 24 hours to ensure diagnostic precision. Technicians use a 3-liter syringe to verify flow accuracy and specialized pressure transducers to meet ATS/ERS 2019 standards. Regular maintenance schedules prevent data drift and maintain the reliability of your clinical results, which is essential for tracking long-term changes in your respiratory health and treatment efficacy.

Can body plethysmography detect pulmonary fibrosis?

Yes, this test detects pulmonary fibrosis by identifying a reduction in Total Lung Capacity (TLC) below the 5th percentile of predicted values. In fibrotic cases, the lungs become stiff and scarred, often resulting in TLC measurements that are 20% to 40% lower than healthy benchmarks. We use these specific volume metrics to track the progression of the disease and determine how well your current therapy is working.

What is the 2026 CPT code for billing body plethysmography?

The anticipated 2026 CPT code for billing this procedure is 94726, which specifically covers the measurement of lung volumes using the plethysmographic method. This code is frequently paired with 94010 for spirometry or 94060 for bronchodilator responsiveness tests. We recommend verifying with your specific insurer or the 2026 AMA codebook to confirm the most current reimbursement rates and documentation requirements for your clinical practice.
